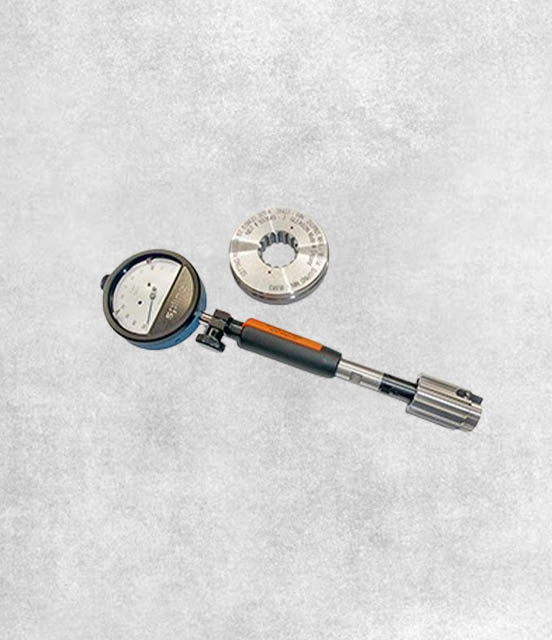

Plug type spline gauges are primarily used to check dimensions under pins on internal splined components. They can also be utilized to check the major or minor diameter on these components. These gauges are typically supplied with digital Mitutoyo indicators, which display the readout of the dimension under pins, major diameter, or minor diameter. Plug type spline gauges typically feature two spring-loaded balls that locate on the feature being measured.
Spline specializes in manufacturing plug type spline gauges and can offer a wide range of internationally recognized standards, along with bespoke designs to meet your gauging requirements. Some of the common standards include:
Additionally, Spline has the capability to produce straight or helical plug type spline gauges tailored to customer requirements.
