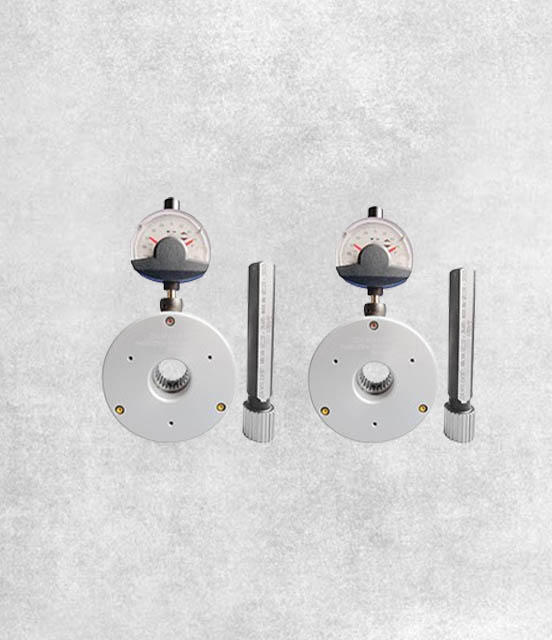

Spline ring contact type gauges are primarily used to check dimensions under pins on external splined components. They can also be utilized to measure the major or minor diameter on outer splined components. These gauges are typically supplied with digital Mitutoyo indicators, which display the readout of the dimension under pins, major diameter, or minor diameter. Ring type spline gauges generally feature two spring-loaded balls that locate on the features being measured.
Spline specializes in manufacturing ring type spline gauges and can provide a wide range of internationally recognized standards, along with bespoke designs to meet your gauging requirements. Some of the common standards include:
Additionally, Spline has the capability to produce straight ring type spline gauges tailored to customer requirements.
