Spline Gauge Manufacturers in Pune

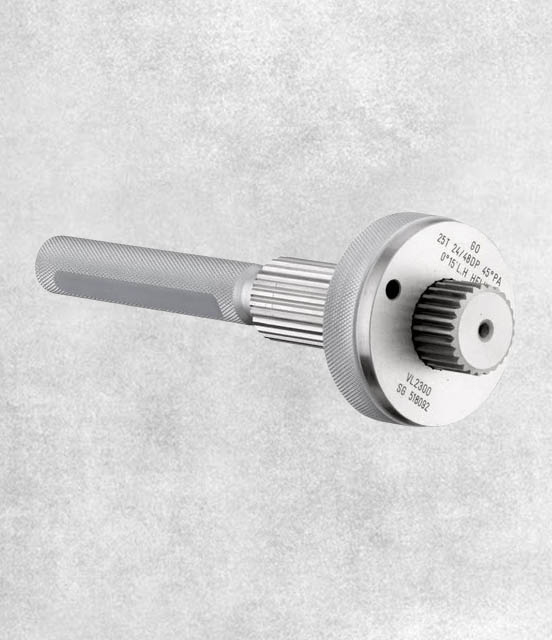

Name: Spline Gauge
Brand: Sanket Enterprises
Rating: 4.6 (98 reviews)

Sanket Enterprises, Spline Gauge Manufacturers in Pune, Spline Gauge Suppliers in Pune, Spline Gauge Dealers in Pune, and Spline Gauge Traders in Pune, crafts spline gauges - also known as go-and-no-go gauges for splines - to inspect both internal and external spline profiles for dimensional accuracy, pitch control, and smooth assembly. These precision instruments fall into five main categories, and they find use in automotive transmissions, gearboxes, hydraulic pumps, and aerospace drive systems.

Spline Gauge Manufacturers, Suppliers, Dealers, Traders in Pune

Furthermore, as a top Spline Gauge Manufacturers in Pune and Spline Gauge Suppliers in Pune adhere to stringent quality protocols honed since 2018, ensuring each gauge meets international standards and maintains wear resistance under shop-floor conditions. Additionally, we leverage ISO- and ANSI-compliant fabrication and in-house calibration to guarantee consistent performance and durability.

Spline Gauge Overview: Specifications, Types, Applications

As trusted Spline Gauge Dealers in Pune and Spline Gauge Traders in Pune offer a concise range of instruments: go/no-go functional gauges for basic pass/fail checks, composite gauges for variable inspection, and precision indicator gauges for detailed profile measurements. Likewise, our spline gauges support involute, serration, straight-sided, parallel, and helical profiles, with measurement coverage from 5 mm up to 500 mm in diameter.

Moreover, customers appreciate how these gauges reduce inspection time by up to 50%, require minimal operator training, and deliver reliable tolerances within ±0.005 mm—ideal for high-throughput mass-production environments.

Technical Specifications of the Spline Gauge

Specification	Detail
Material	Hardened steel; Tungsten carbide; Alloy steel
Standards	ISO 4156; DIN 5480; ANSI B92.1; JIS B1603
Tolerance Range	±0.005 mm (profile, spacing, runout)
Measurement Range	5 mm to 500 mm diameter; Module 0.5 to 10
Surface Finish	Ultra-smooth lapped finish for precise mating
Hardness	58–65 HRC (steel); 1500–1800 HV (carbide)
Wringing/Assembly Ability	Excellent (metal-to-metal); Moderate (ceramic)

Types of Spline Gauges

Spline Gauge: Checks form, fit, and accuracy of splined shafts and hubs through direct go/no-go testing.
Spline Ring Gauges: Inspects external splines on shafts by allowing Go-end full engagement and No-Go end limited engagement.
Variable Spline Indicator Gauges: Measures attributes like dimension over balls (DOB), measurement over pins (MOP), circular space width (CSW), and tooth thickness (CTT) with a dial indicator.
Ring Gauges: General-purpose circular gauges for external cylindrical parts, ensuring diameter tolerances for shafts and pipes.
BSW Gauges: British Standard Whitworth thread gauges adapted for specialized spline-thread checkouts in legacy equipment.

Applications of Spline Gauges

Automotive Industry: Verifies spline shafts and gear transmissions to prevent drivetrain failures.
Aerospace Sector: Ensures flight-control components and engine couplings meet rigorous safety standards.
Heavy Machinery: Checks splined couplings in excavators and bulldozers for reliable torque transmission.
Machine Tool Setup: Aligns spline fixtures and sine bars in precision tool rooms.
Quality Control Labs: Calibrates and certifies master gauges for traceable inspection records.

Spline Gauge Ordering, Compliance and Safety Information

To place an order, provide your spline profile, module, and tolerance requirements; we’ll deliver a tailored quote within 24 hours. All gauges undergo ISO 9001 quality management and adhere to ANSI safety protocols. Furthermore, each instrument ships with a calibration certificate and gauge drawing for full traceability.

Why Should You Buy Our Product?

Unmatched Expertise: Over 30 years of collective industry experience and 289 satisfied clients.
Precision Guaranteed: Profile tolerances within ±0.005 mm for dependable go/no-go checks.
Robust Materials: Hardened steel, carbide, or alloy for high wear resistance.
Comprehensive Service: Custom gauge set building, on-site calibration, and rapid maintenance.

Local Reach:

Ready to Elevate Your Spline Inspection?

Sanket Enterprises - Spline Gauge Manufacturers in Pune, Spline Gauge Suppliers in Pune, Spline Gauge Dealers in Pune, and Spline Gauge Traders in Pune - invites you to experience unmatched precision and service. Contact us for durable, go/no-go, and variable spline gauges that streamline your quality control and keep your production lines running at peak efficiency.
